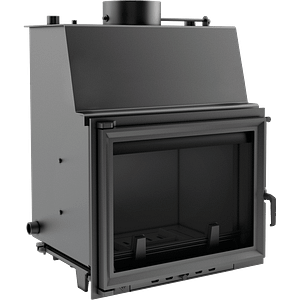

Boiler Fireplace AMELIA 15 KW Ø 220 Deco

15
Average power from water (kW)	8
Heating power range (kW)	7 – 18
Material	steel, cast iron
Heating efficiency (%)	85
Fuel type	seasoned hardwood (moisture ≤20%)
Max working pressure (bar)	2
Water capacity (l)	60
Exhaust gas temperature (℃)	200
Max length of logs (cm)	50
Glazing type	flat
Door opening system	w lewo

Basic dimensions

Weight (kg)	232
Exhaust outlet diameter (mm)	220
Width (cm)	75
Height (cm)	95.9
Depth (cm)	48.9

Certificates / Compliance

ECODESIGN compliance
BImSchV 2 compliance

Energetic efficiency

Energy class	A
Energy efficiency index (EEI)	98.875
CO emissions (at 13% O 2 ) ≤ given in %	0
Dust emission (mg/Nm3)	100.5

Equipment

Combustion chamber lining
Ash pan
Screen printed glass
Coil spiral

Fireplace insert with water system adapted for intensive burning. Technologies and materials applied provide the fireplace works efficiently and economically.

The body and the front of the insert are resistant to high temperatures thanks to the high quality steel used in production.

Built in smoke tubes and high flue, which increase the heat exchange surface.

Increased heat exchange surface due to built-in smoke tubes and high flue.

Regulation of chimney draft using built-in damper.

Manual control over the combustion process carried out by ash tray regulator.

SAFETY AT THE HIGHEST LEVEL

Perfect tightness thanks to the solid welds made in a noble gas shielding.

All steel elements are laser cut and bent on CNC bending machines.

Protection against overheating by the built-in coil pipe – connector input / output 1/2”.

CONVENIENT TO USE

Decorative fence helps to maintain the tidiness and protects against falling out of wood.

Movable grate and ashpan enables to clean the insert.

Decorative, heat-resistant glass that can withstand temperatures up to 660°C. It gives a fireplace a modern and elegant look, visually enlarges the front of the insert.
