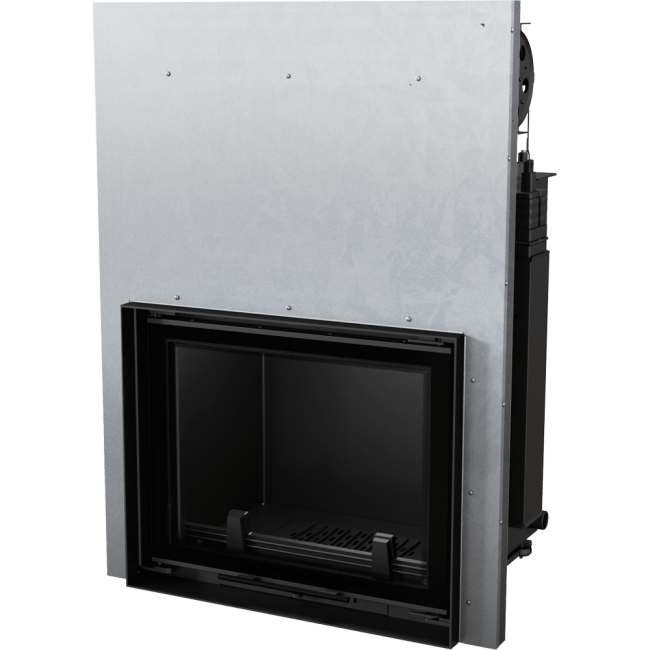

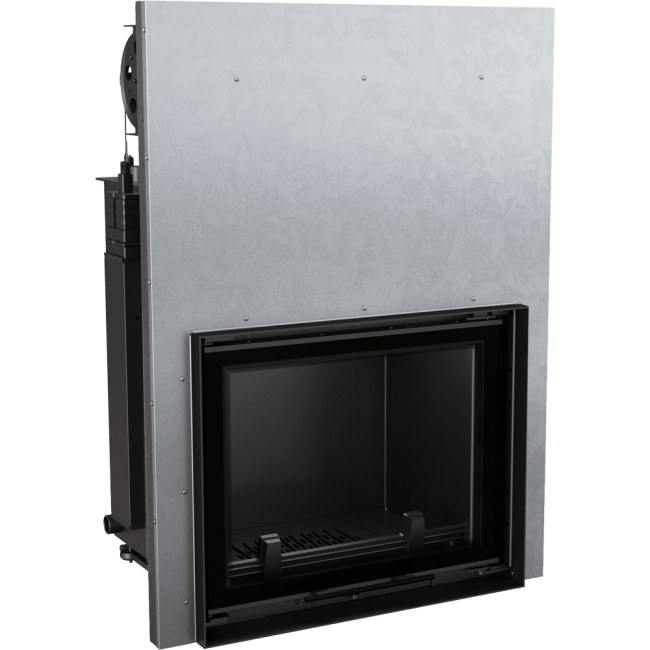

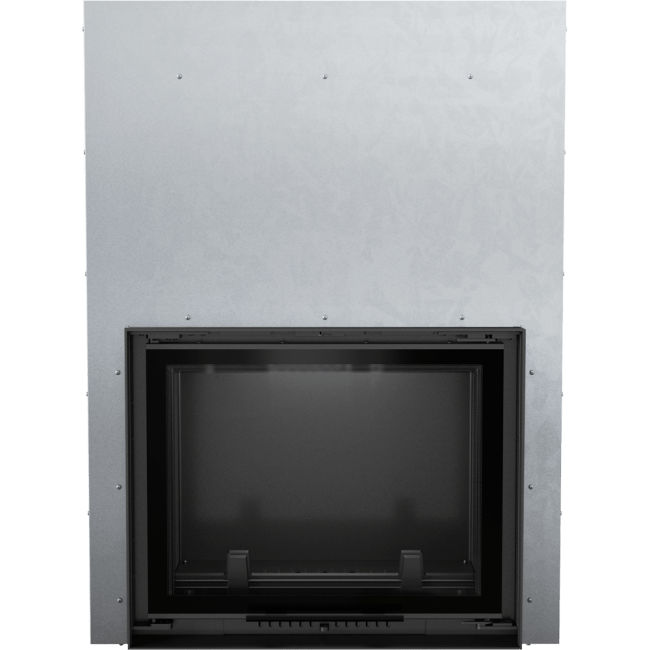

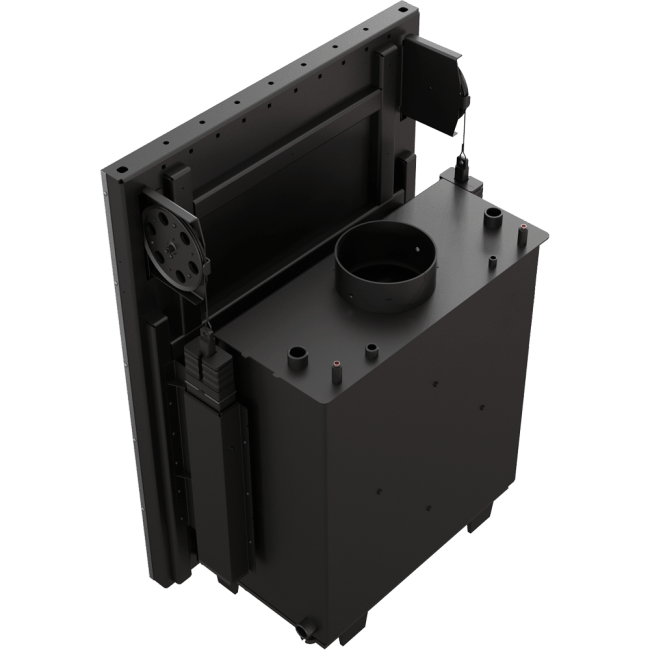

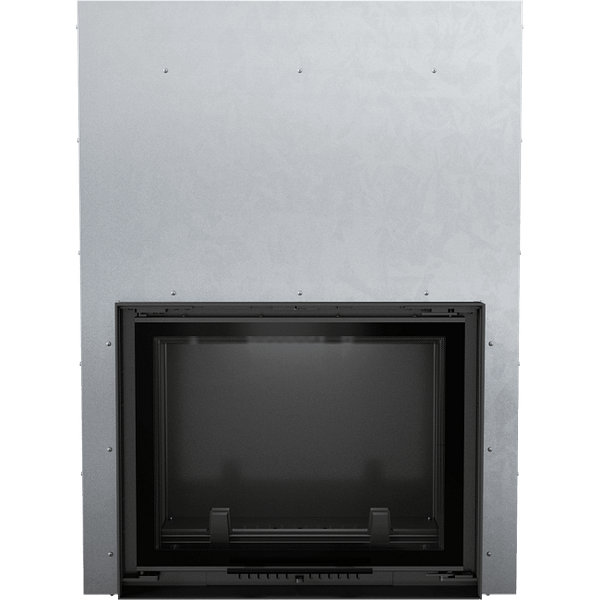

Boiler Fireplace AMELIA Lift-Up 15 KW Ø 220
15 | |
Average power from water (kW) | 8 |
Heating power range (kW) | 7 – 18 |
Material | steel, cast iron |
Heating efficiency (%) | 85 |
Fuel type | seasoned hardwood (moisture ≤20%) |
Max working pressure (bar) | 2 |
Water capacity (l) | 60 |
Exhaust gas temperature (℃) | 200 |
Max length of logs (cm) | 50 |
Glazing type | flat |
Door opening system | do góry |
Basic dimensions
Weight (kg) | 285 |
Exhaust outlet diameter (mm) | 220 |
Width (cm) | 90.4 |
Height (cm) | 123.5 |
Depth (cm) | 54.9 |
Certificates / Compliance
ECODESIGN compliance | |
BImSchV 2 compliance |
Energetic efficiency
Energy class | A |
Energy efficiency index (EEI) | 98.88 |
CO emissions (at 13% O 2 ) ≤ given in % | 0 |
Dust emission (mg/Nm3) | 100.5 |
Equipment
Ash pan | |
Screen printed glass | |
Coil spiral |
Fireplace insert with water system adapted for intensive burning. Technologies and materials applied provide the fireplace works efficiently and economically.
The body and the front of the insert are resistant to high temperatures thanks to the high quality steel used in production.
Built in smoke tubes and high flue, which increase the heat exchange surface.
Increased heat exchange surface due to built-in smoke tubes and high flue.
Manual control over the combustion process carried out by ash tray regulator.
SAFETY AT THE HIGHEST LEVEL
Perfect tightness thanks to the solid welds made in a noble gas shielding.
All steel elements are laser cut and bent on CNC bending machines.
Protection against overheating by the built-in coil pipe – connector input / output 1/2”.
Fireplace`s doors resistant to tensions and stable thanks to the use of closed profile. Door seals designed in profiled canal what guarantees proper adherence and protects against ewentual falling out while operating.
CONVENIENT TO USE
Double door opening system – lift up (Guillotine) and side opening. Lifted door makes loading of wood easier and machanism of side door opening allows to clean the glass.
Movable grate and ashpan enables to clean the insert.
Decorative fence helps to maintain the tidiness and protects against falling out of wood.
MODERN DESIGN
Decorative, heat-resistant glass that can withstand temperatures up to 660°C. It gives a fireplace a modern and elegant look, visually enlarges the front of the insert.
Delivery
14 working days
Energy class A
£2,720.00
