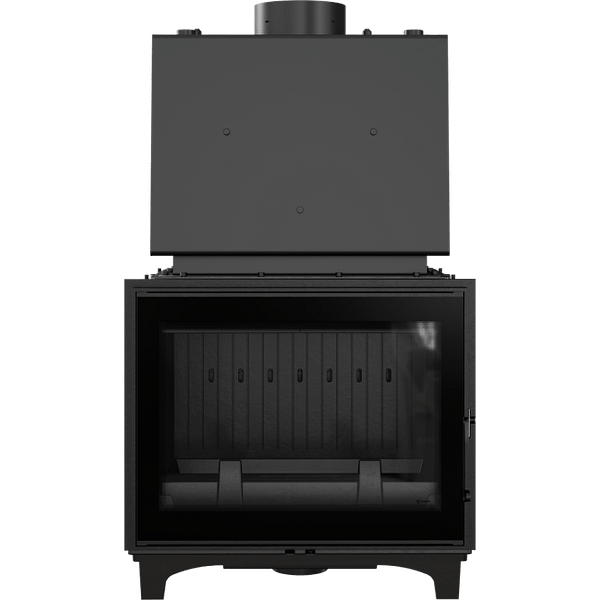

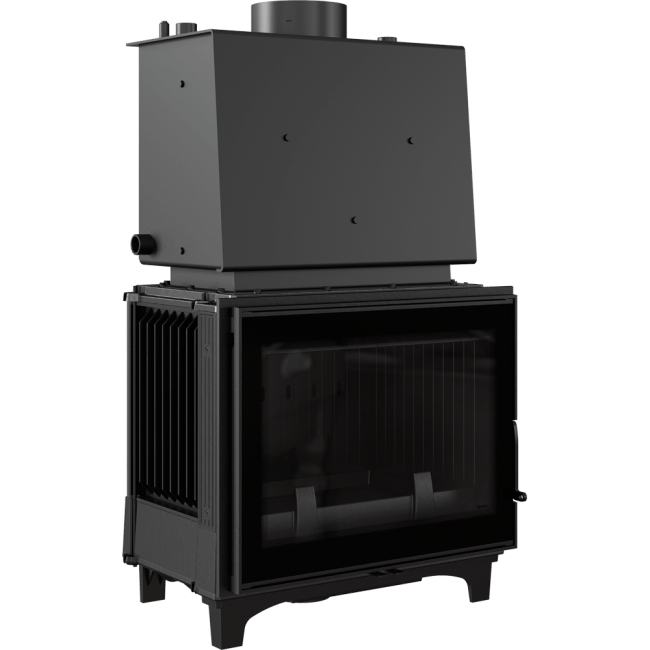

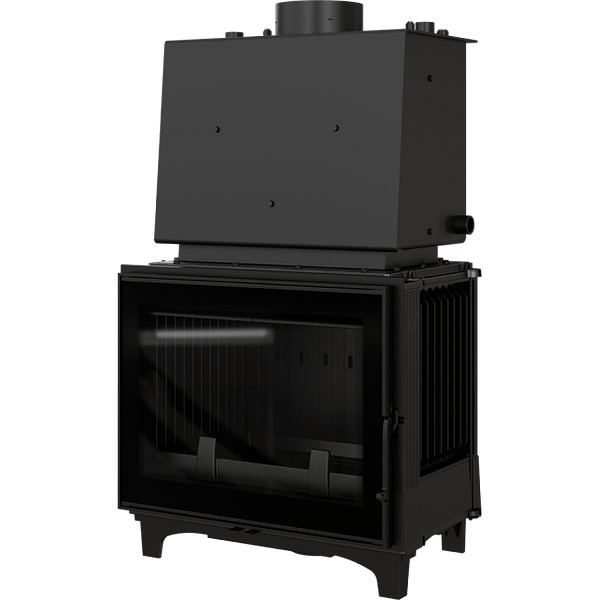

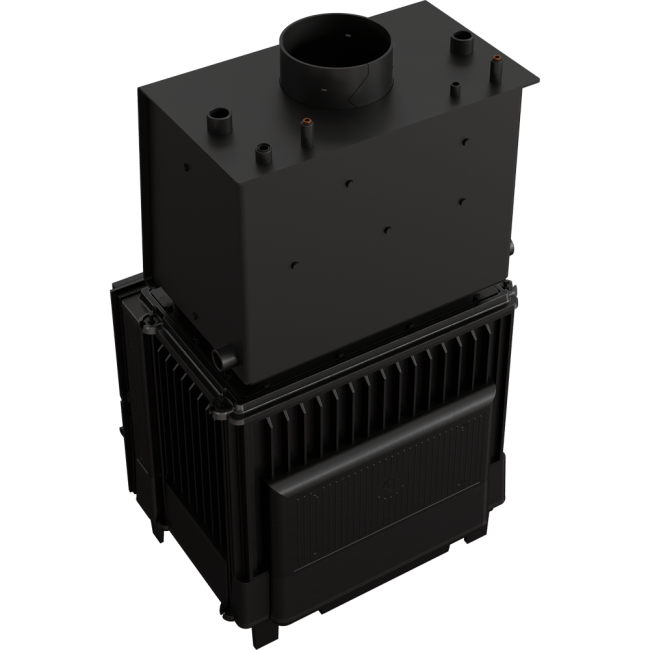

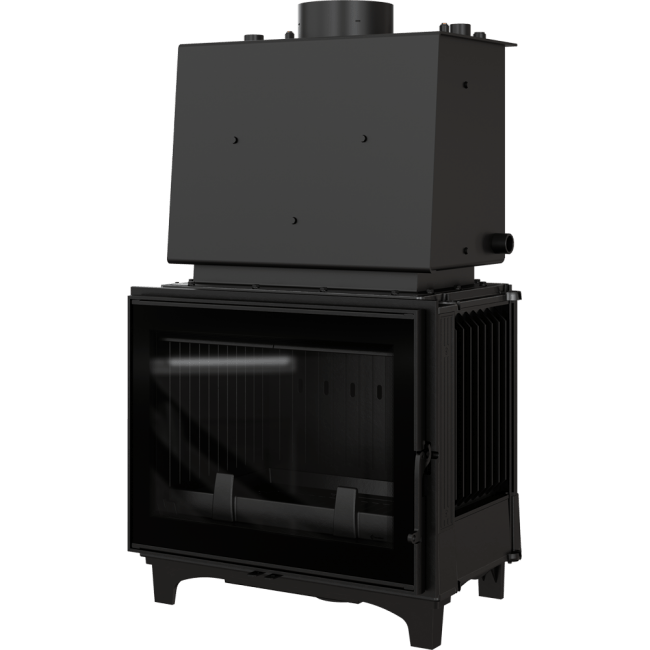

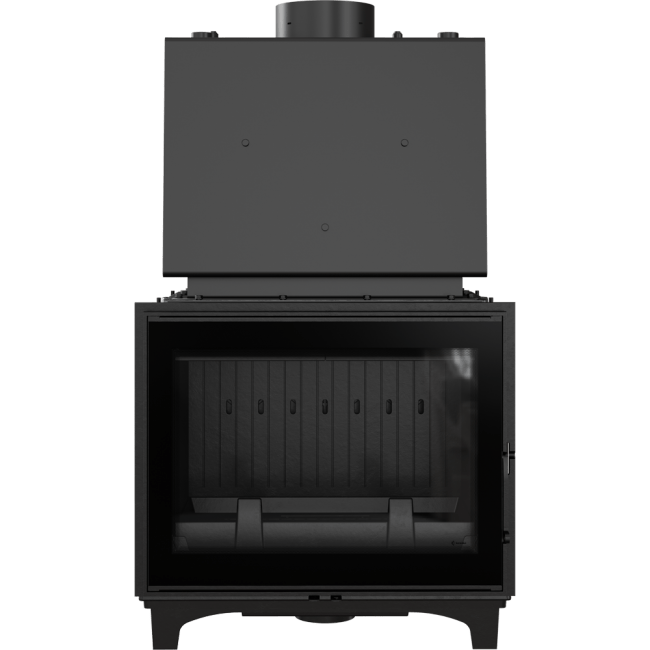

Boiler Fireplace FRANEK 12 KW Ø 200

General Information

Rated output (kW)12
Average power from water (kW)6.5
Heating power range (kW)5.0 – 15.0
Materialsteel, cast iron
Heating efficiency (%)81
Fuel typeseasoned hardwood (moisture ≤20%)
Max working pressure (bar)2
Water capacity (l)32
Exhaust gas temperature (℃)230
Max length of logs (cm)50
Glazing typeflat
Door opening systemleft-hand

Basic dimensions

Weight (kg)348
Exhaust outlet diameter (mm)200
Width (cm)70
Height (cm)114.7
Depth (cm)51.1

Certificates / Compliance

ECODESIGN compliance
Suitable for recuperation
BImSchV 2 compliance

Energetic efficiency

Energy classA+
Energy efficiency index (EEI)108.5
CO emissions (at 13% O 2 ) ≤ given in %0.1
Dust emission (mg/Nm3)13

Equipment

External air inlet
Ash pan
Screen printed glass
Coil spiral

Fireplace insert FRANEK 12 with a water base and coil is a combination of the functionality of a cast-iron air fireplace and a base that can be connected to a central heating installation. It is equipped with a spacious glazing that gives a large vision of fire.

Delivery

14 working days

Energy class A

£2,000.00
