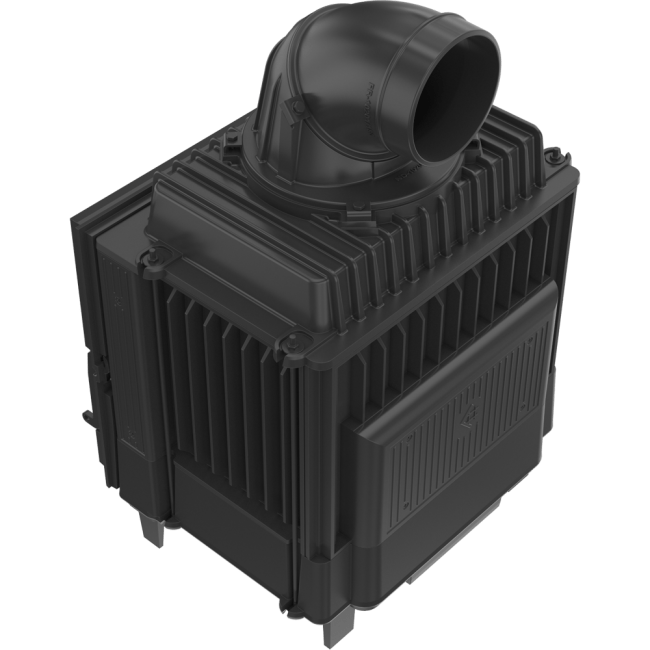

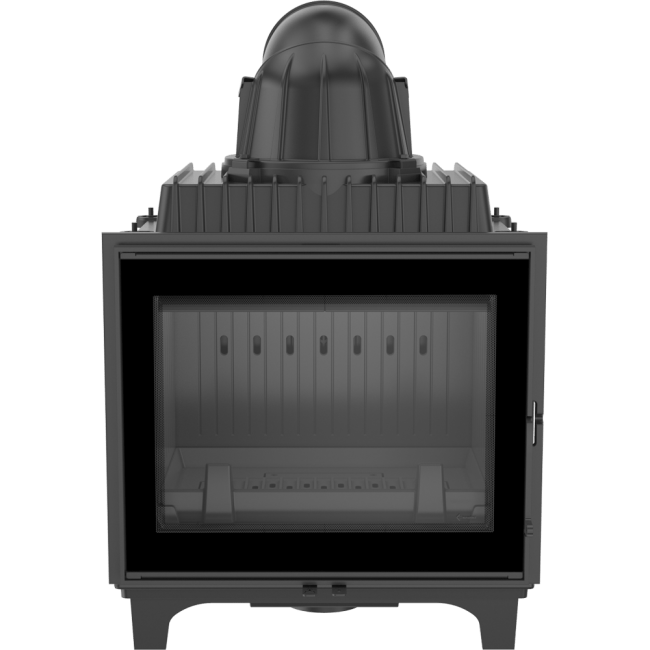

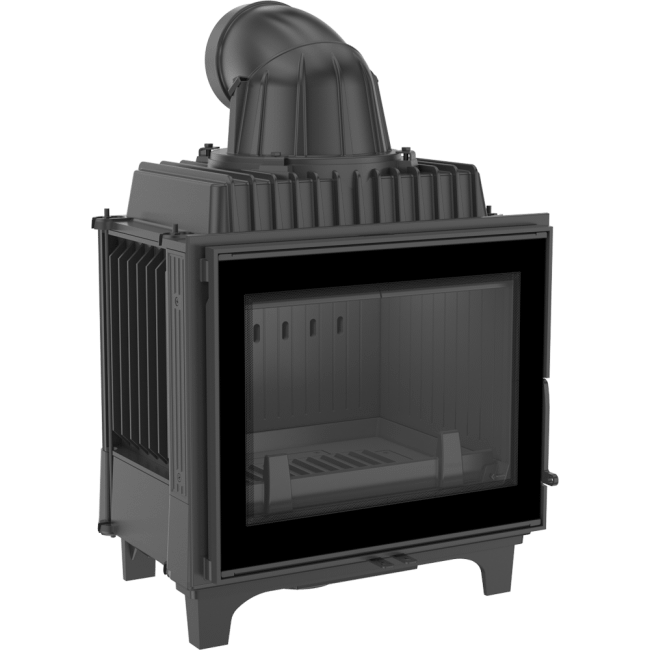

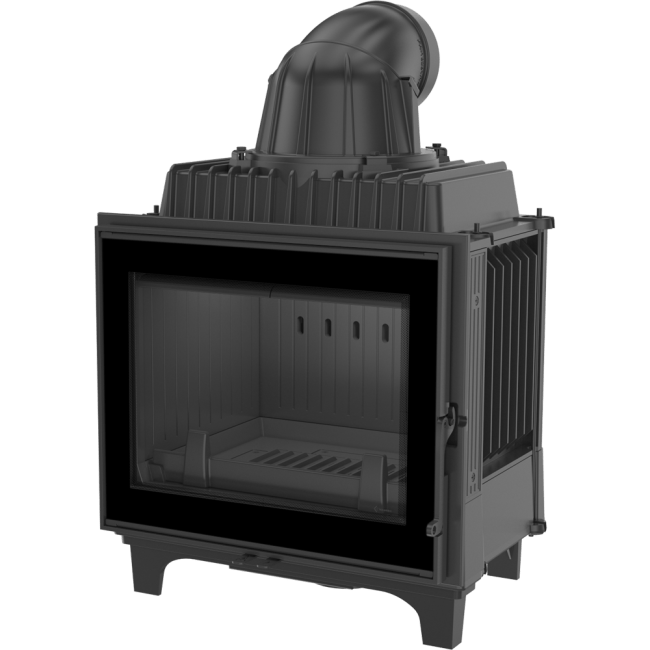

Cast Iron Fireplace FRANEK 10 KW Ø 180
General Information
Rated output (kW) 10
Heating power range (kW) 5.0 – 13.0
Material cast iron
Heating efficiency (%) 80
Fuel type seasoned hardwood (moisture ≤20%)
Exhaust gas temperature (℃) 265
Max length of logs (cm) 40
Min outlet grids active field (cm2) ≥700
Min inlet grids active field (cm2) ≥500
Glazing type flat
Door opening system left-hand
Basic dimensions
Weight (kg) 190
Exhaust outlet diameter (mm) 180
Width (cm) 60
Height (cm) 91.4
Depth (cm) 44.5
Certificates / Compliance
ECODESIGN compliance
Suitable for recuperation
BImSchV 2 compliance
Energetic efficiency
Energy class A
Energy efficiency index (EEI) 105.4
CO emissions (at 13% O 2 ) ≤ given in % 0.1
Dust emission (mg/Nm3) 25
Equipment
External air inlet
Ash pan
Screen printed glass
The insert with high heating efficiency and characteristic way of space the radiators which enlarge heating surface of the insert.
Delivery
14 working days
Energy class A
£1,860.00
