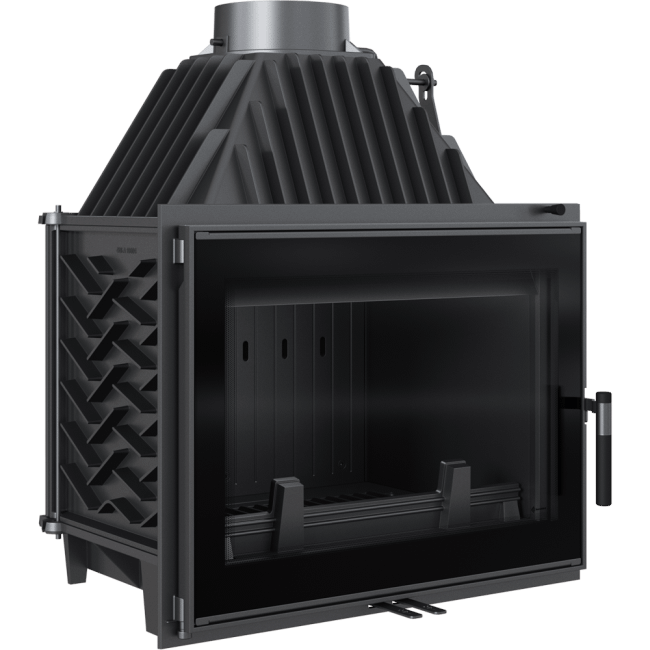

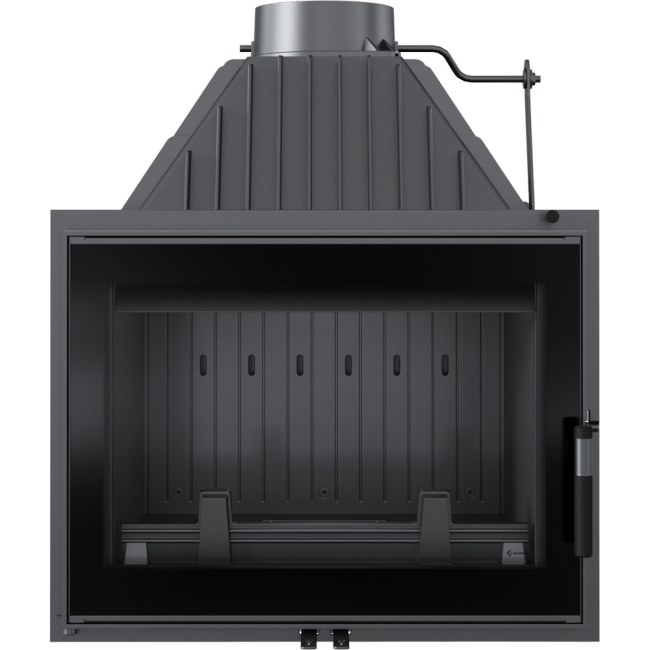

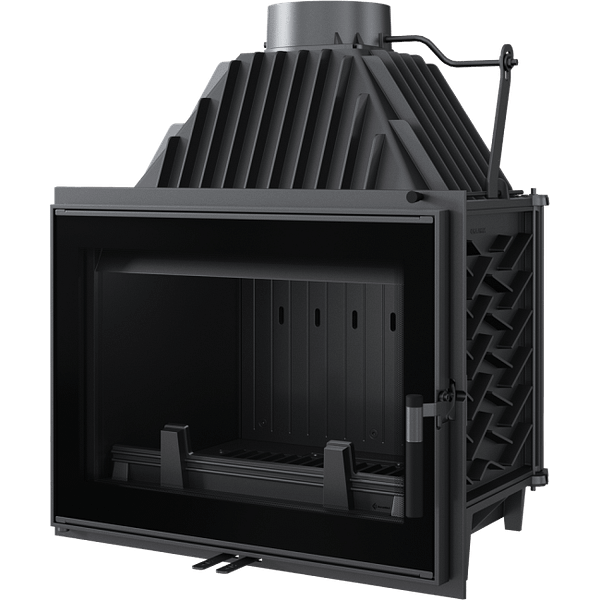

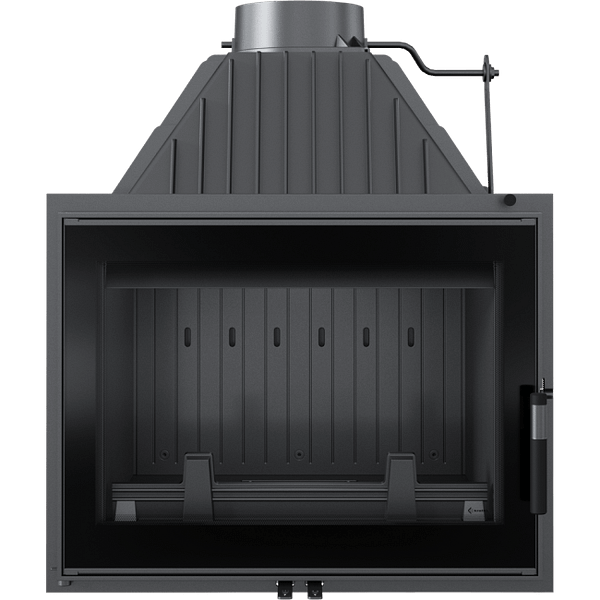

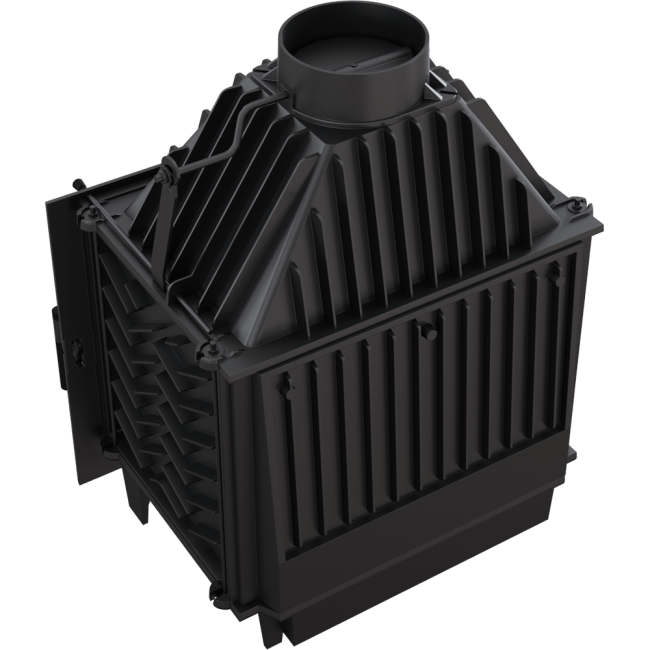

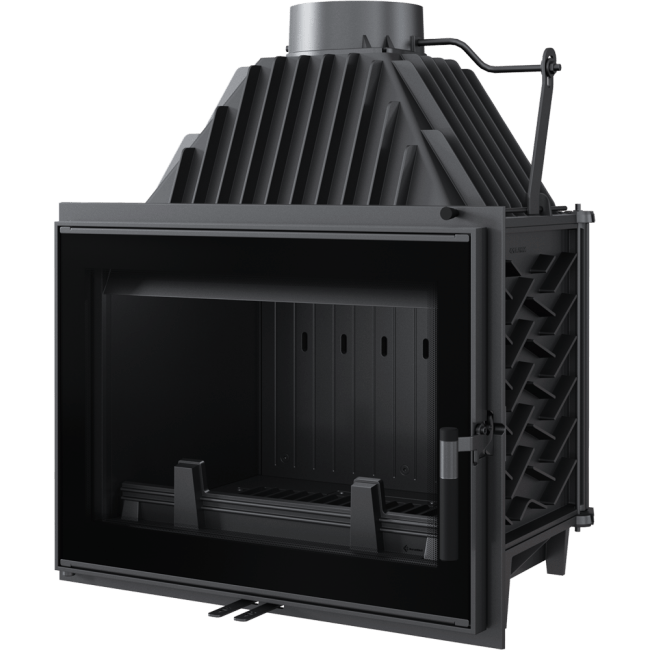

Cast Iron Fireplace ZOSIA 12 KW Ø 200
General Information
Rated output (kW) 12
Heating power range (kW) 6.0 – 15.5
Material steel, cast iron
Heating efficiency (%) 83
Fuel type seasoned hardwood (moisture ≤20%)
Exhaust gas temperature (℃) 209
Max length of logs (cm) 50
Min outlet grids active field (cm2) ≥900
Min inlet grids active field (cm2) ≥700
Glazing type flat
Door opening system left-hand
Basic dimensions
Weight (kg) 194
Exhaust outlet diameter (mm) 200
Width (cm) 70
Height (cm) 84.8
Depth (cm) 48
Certificates / Compliance
ECODESIGN compliance
Suitable for recuperation
BImSchV 2 compliance
Energetic efficiency
Energy class A+
Energy efficiency index (EEI) 109.32
CO emissions (at 13% O 2 ) ≤ given in % 0.1
Dust emission (mg/Nm3) 22
Equipment
External air inlet
Ash pan
Screen printed glass

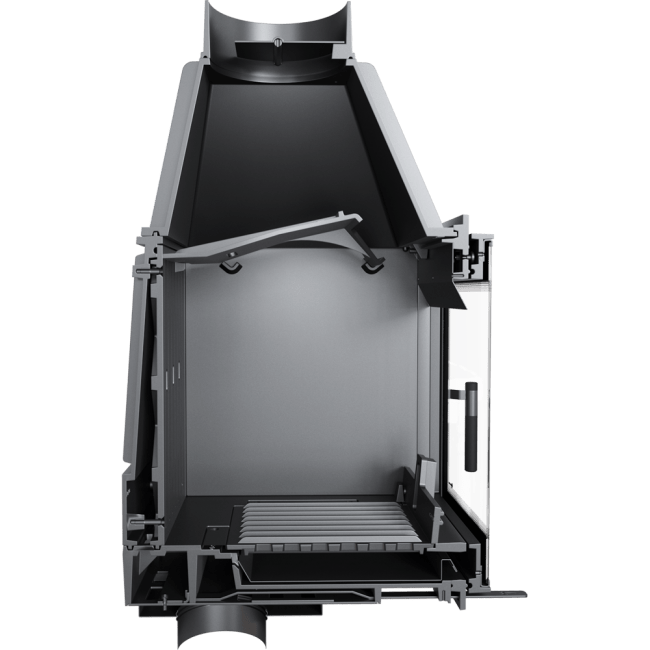

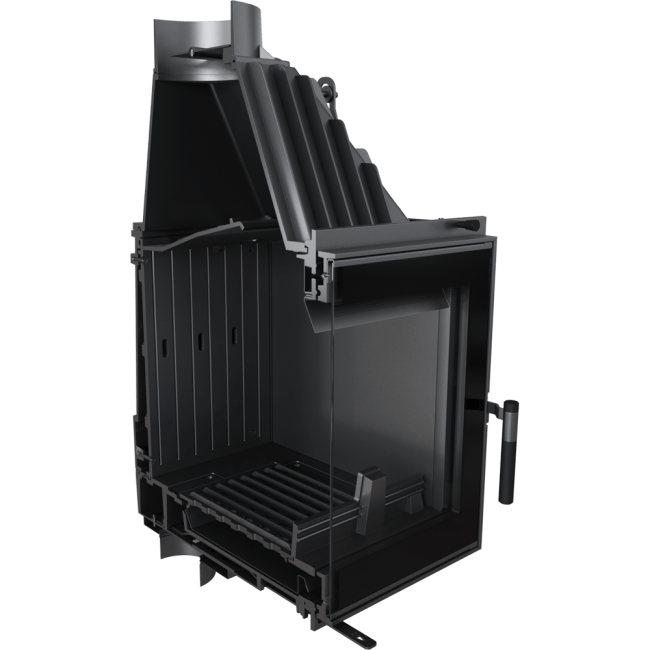

ZOSIA ECO insert is a fireplace with a large cast iron combustion chamber. Due to its tightness, it perfectly suits homes with recuperation. Moreover, its technical characteristics make a contribution that the insert meets the Ecodesign requirements.
Delivery
14 working days
Energy class A
£1,540.00
