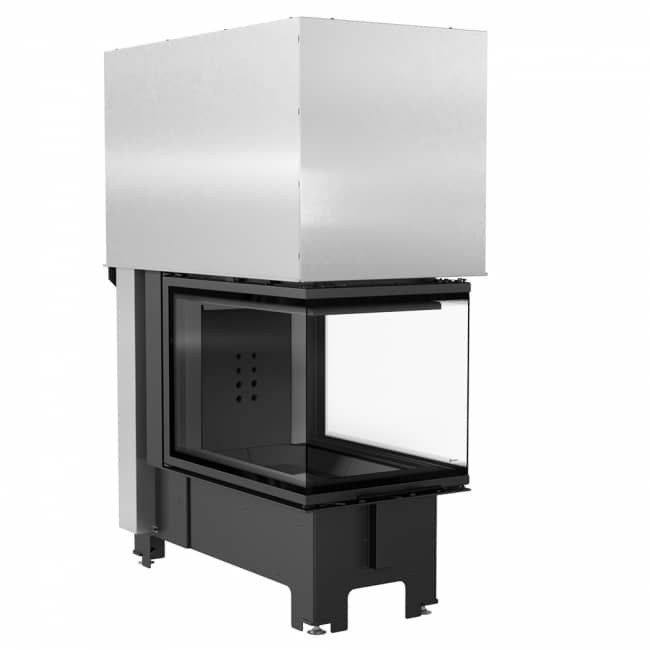

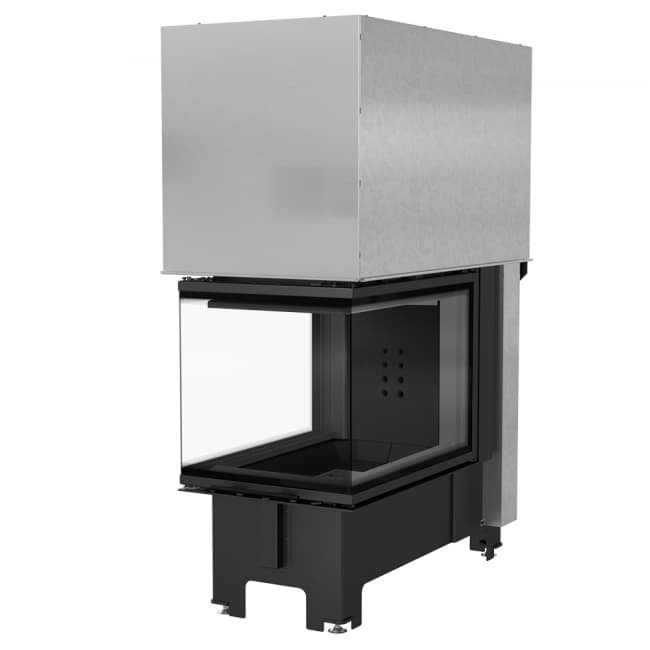

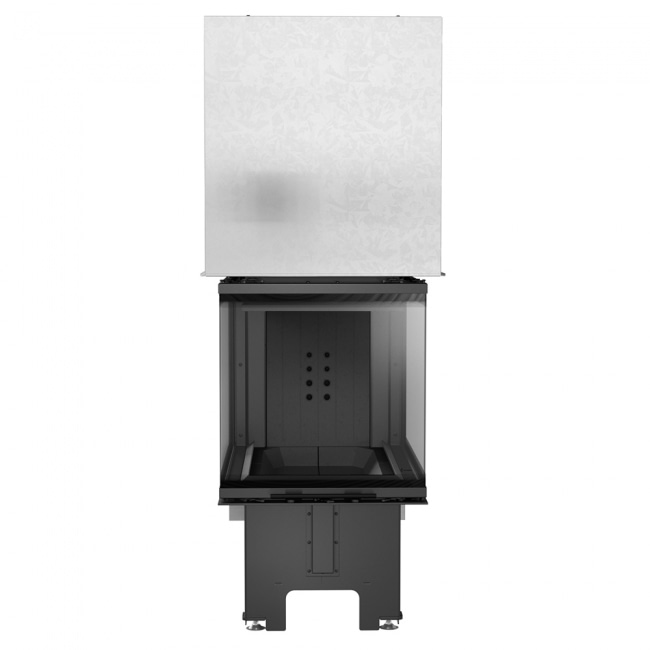

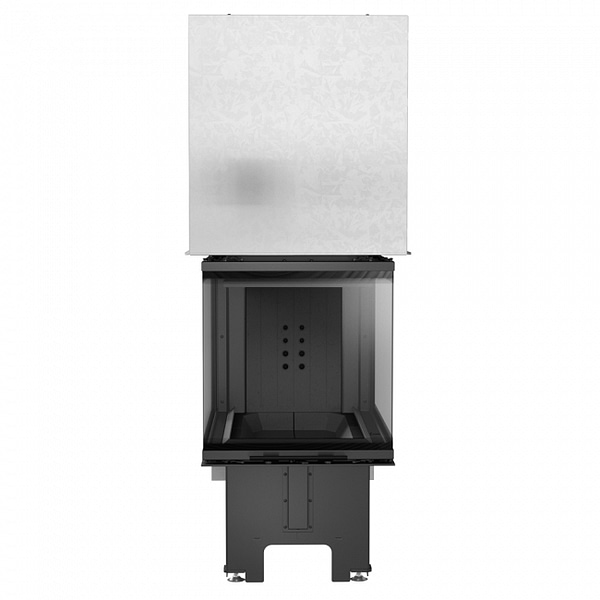

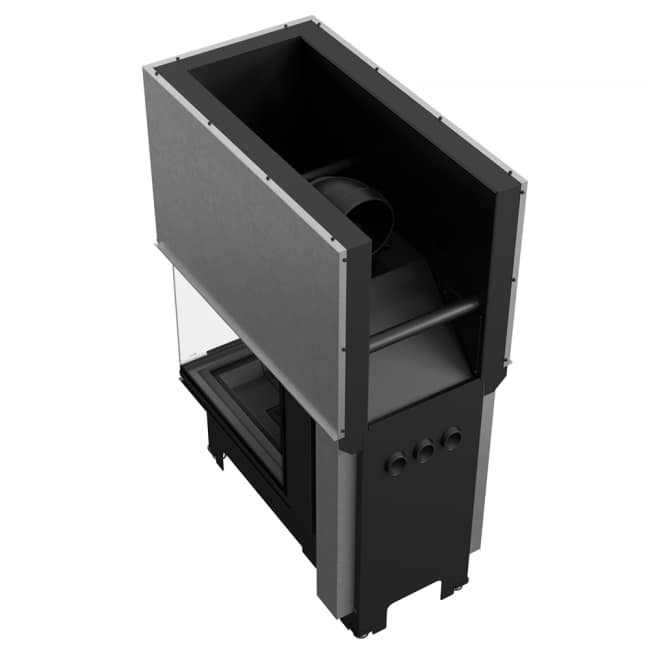

STEEL FIREPLACE NBU L/P 11KW LIFT-UP SYSTEM BLACK WITH MSK GLASS



General Information

Rated output (kW)11
Heating power range (kW)4.5 – 14.0
Materialsteel
Heating efficiency (%)83
Fuel typeseasoned hardwood (moisture ≤20%)
Exhaust gas temperature (℃)180
Max length of logs (cm)50
Min outlet grids active field (cm2)≥900
Min inlet grids active field (cm2)≥700
Glazing typecorner
Door opening systemlifted up

Basic dimensions

Weight (kg)299.1
Exhaust outlet diameter (mm)200
Width (cm)57.8
Height (cm)147.1
Depth (cm)102

Certificates / Compliance

ECODESIGN compliance
Suitable for recuperation
BImSchV 2 compliance

Energetic efficiency

Energy classA+
Energy efficiency index (EEI)111.4
CO emissions (at 13% O 2 ) ≤ given in %0
Dust emission (mg/Nm3)17

Equipment

External air inlet
Combustion chamber lining
Ash pan
Screen printed glass

A 3-sided NBU fireplace insert equipped with the MSK GLASS controller and an automatic throttle. A product for all those who care about economics and ecology of burning. The electronic control of fireplace operation ensures optimum burning conditions and savings of up to 30% of fuel.

Delivery

14 working days

Energy class A

£4,250.00
