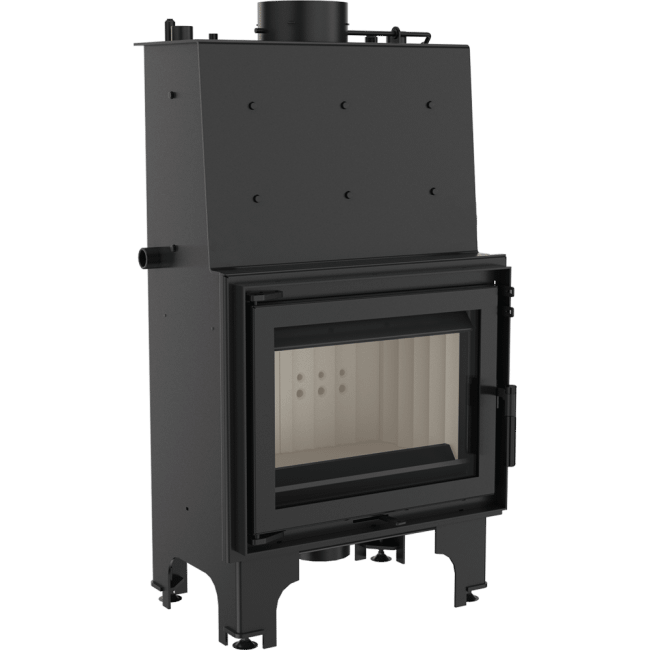

WATER FIREPLACE AQUARIO M12 PW
General Information
| Rated output (kW) | 12 |
| Average power from water (kW) | 8 |
| Heating power range (kW) | 5.0 – 15.0 |
| Material | steel |
| Heating efficiency (%) | 86 |
| Fuel type | seasoned hardwood (moisture ≤20%) |
| Max working pressure (bar) | 2 |
| Water capacity (l) | 47 |
| Exhaust gas temperature (℃) | 185 |
| Max length of logs (cm) | 45 |
| Glazing type | flat |
| Door opening system | left-hand |
Basic dimensions
| Weight (kg) | 210 |
| Exhaust outlet diameter (mm) | 180 |
| Width (cm) | 64.5 |
| Height (cm) | 120.1 |
| Depth (cm) | 40 |
Certificates / Compliance
| ECODESIGN compliance | |
| Suitable for recuperation | |
| BImSchV 2 compliance |
Energetic efficiency
| Energy class | A+ |
| Energy efficiency index (EEI) | 113.2 |
| CO emissions (at 13% O 2 ) ≤ given in % | 0 |
| Dust emission (mg/Nm3) | 26 |
Equipment
| External air inlet | |
| Combustion chamber lining | |
| Coil spiral |
More options for Rated output (kW) available – please contact us
Aquario insert is a water-jacket device with a corpus built of double steel walls. The space between them is filled with water that receives heat and transfers it to the heating system.
Delivery
14 working days
Energy class A
£2,250.00
Category: Traditional fireplace inserts
