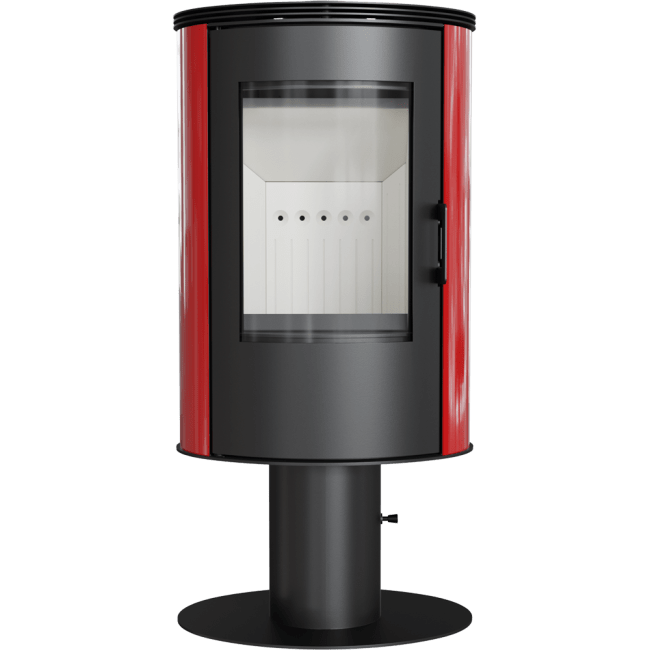

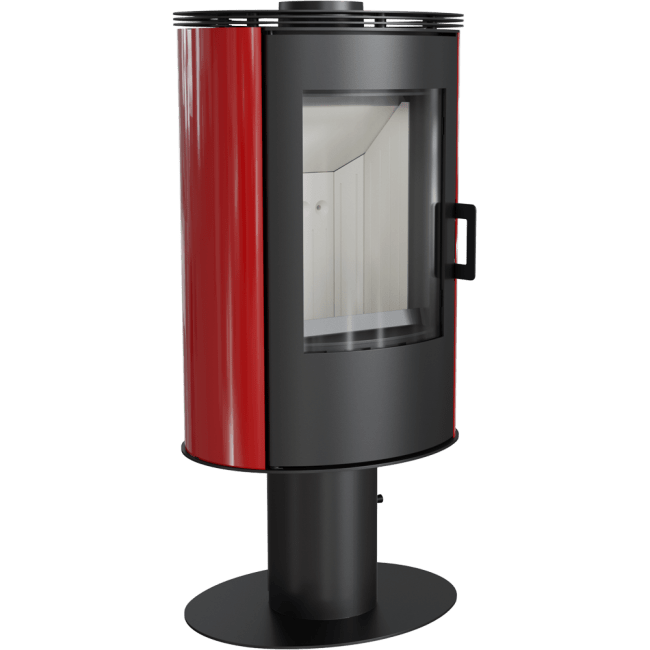

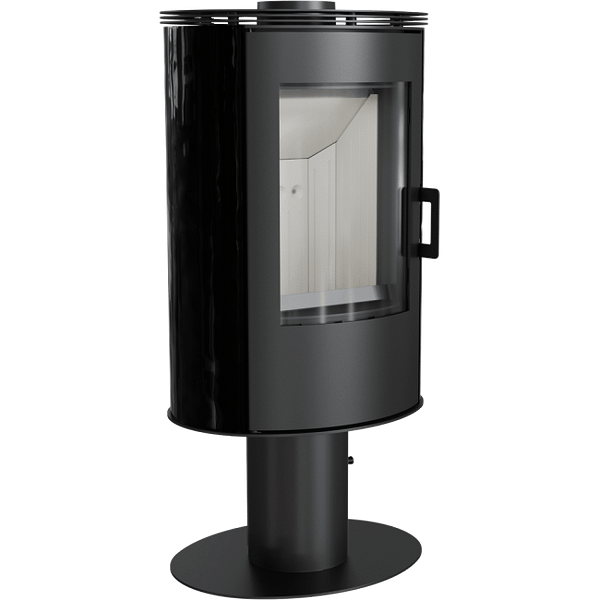

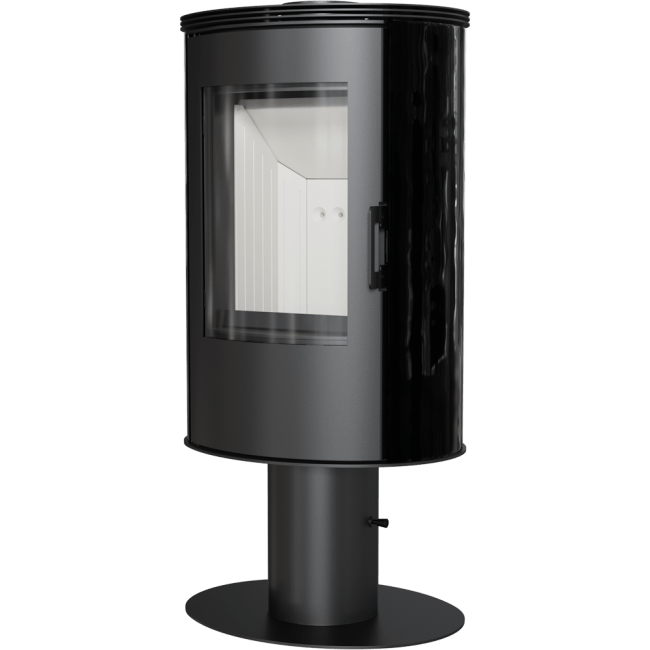

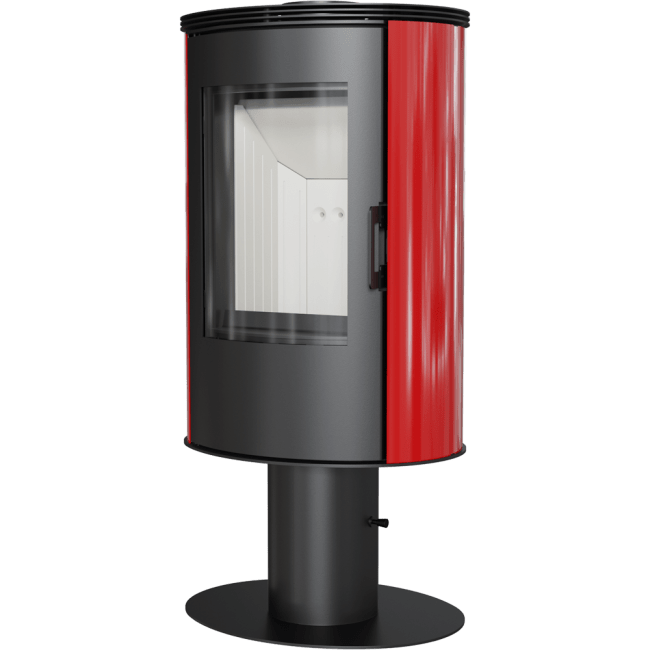

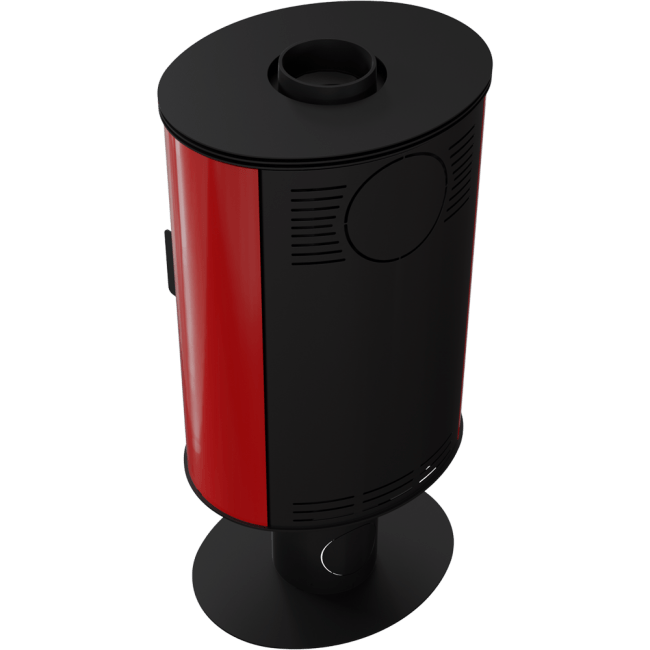

Wood burning steel tiled rotary stove AB Ø 150 8 kW black/red

8
Heating power range (kW)5.5 – 10.5
Materialsteel
Heating efficiency (%)78
Fuel typeseasoned hardwood (moisture ≤20%)
Exhaust gas temperature (℃)265
Max length of logs (cm)25
Glazing typerounded
Door opening systemleft-hand

Basic dimensions

Weight (kg)115
Exhaust outlet diameter (mm)150
Width (cm)52.8
Height (cm)110.9
Depth (cm)42.2

Certificates / Compliance

ECODESIGN compliance
Suitable for recuperation
BImSchV 2 compliance

Energetic efficiency

Energy classA
Energy efficiency index (EEI)102.79
CO emissions (at 13% O 2 ) ≤ given in %0
Dust emission (mg/Nm3)39

Equipment

External air inlet
Combustion chamber lining
Ash pan

Stove AB with cylindrical, modern design is a great solution for people who long for warmth, but do not have a large space in their interior.



The body and the front of the insert are resistant to high temperatures thanks to the high quality steel used in production.

Full combustion on the dust thanks to two deflectors extending the exhaust path.

Triple system of combustion chamber`s air venting: primary air – secondary air supplied under the grate through holes in a back wall. Additionally clean glass system designed (air curtain).

Efficient burning process & maintaining of temperature to keep the warmth for longer thanks to lining of combustion chamber with TERMOTEC – heat accumulating material which raises the temperature in the combustion chamber.

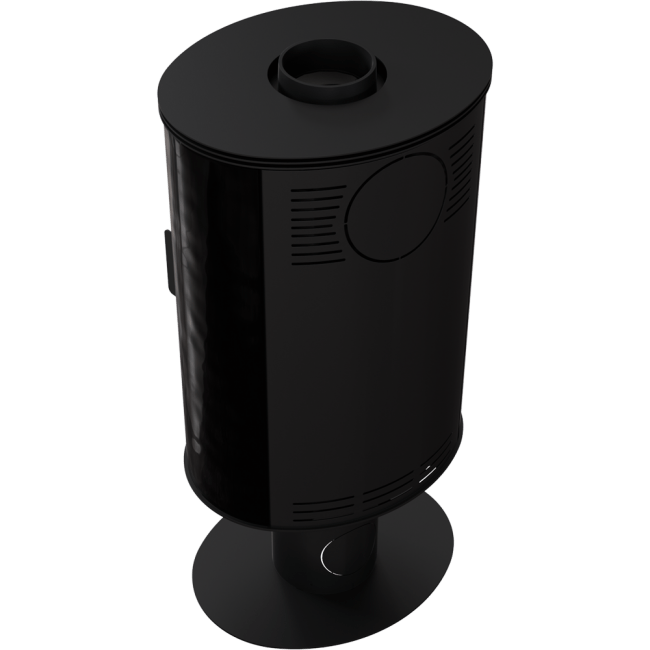

Built-in fi 125 external air intake which provides air supply from the outside directly into the hearth which results in better combustion and better comfort of usage.



ECOLOGICAL COMBUSTION

The stove meets the criteria of Ecodesign and the restrictive BImSchV 2 norm setting the maximum CO emission.

SAFETY AT THE HIGHEST LEVEL

Perfect tightness thanks to the solid welds made in a noble gas shielding.

All steel elements are laser cut and bent on CNC bending machines.

Insert`s front equipped with a heat resistant ceramics that withstands temperatures up to 660°C.



CONVENIENT TO USE

Movable grate and ash drawer enable to keep the stove clean.

Reduced soot deposition through a system of pure glass (air curtain).

Elegant and comfortable sliding handle.



MODERN DESIGN

Design referring to retro style – large grooved tiles.

Rotating body allows you to enjoy the flames from anywhere in the room.

Improved vision of the fire thanks to the curved glass

Delivery

14 working days

Energy class A
